TEE FI X FI X MI 316L #7 3A

Attribute name	Attribute value
Material Type	316L
Size	2
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Female E-Line X Female E-Line X Male E-Line
OD Tube Size	2
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	Click here to request 3D Step File
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	HDI-7A
Wayland Part Number	W7AI
Dixon Part Number	7AI
Sanitary Solutions Part Number	SS7AI
Sanitube Part Number	7AI

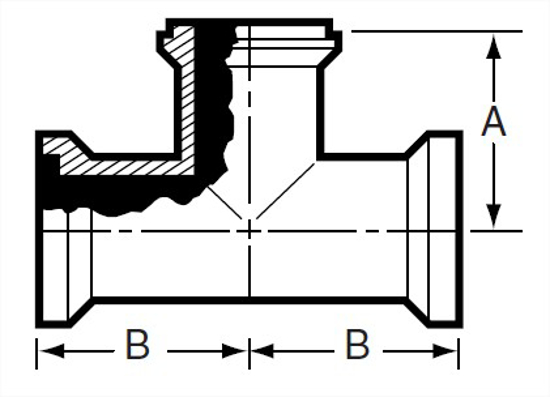

A, in.	2.812
A, mm.	71.42
B, in.	3.062
Product Weight	1.68

Material Type

316L

Industry Standard

3A

Connections

Female E-Line X Female E-Line X Male E-Line

Wall Thickness

0.065

Material Test Reports

MTR’s Available Upon Request

Cad Model File

Click here to request 3D Step File

Alfa Laval Part Number

HDI-7A

Dixon Part Number

7AI

Sanitube Part Number

7AI

A, mm.

71.42

Product Weight

1.68
