TEE CL X CL X W 304 #7 3A

Attribute name	Attribute value
Material Type	304
Size	2.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp X Weld
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E7CCW2.5.STEP
Catalog File	Fittings Catalog.pdf
Steel O’brien Part Number	7MMW-2.5-7-304

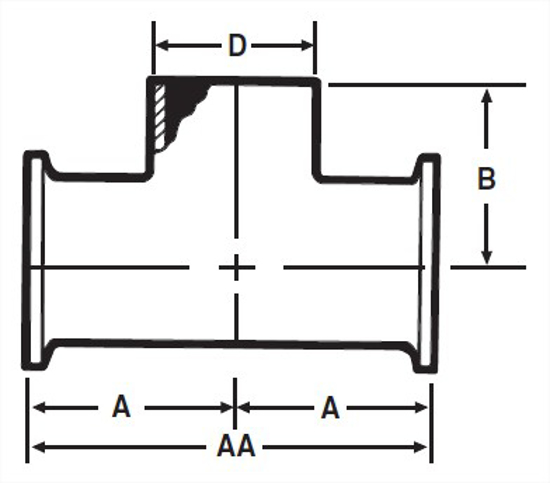

A, in.	2.843
A, mm.	72.21
B, in.	2.343
D, in.	2.5
D, mm.	63.5
T Nom Wall, in.	0.065
AA, in.	5.687
AA, mm.	144.45
Product Weight	1.06
