TEE BRANCH WELD BOTH RUNS THREAD T316L 3A

Attribute name	Attribute value
Material Type	316L
Size	2.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Threaded Bevel Seat X Threaded Bevel Seat X Weld
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	Click here to request 3D Step File
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L7TTW
Wayland Part Number	W7TTW
Dixon Part Number	B7TTW
Sanitary Solutions Part Number	SS7TTW
Sanitube Part Number	7TTW

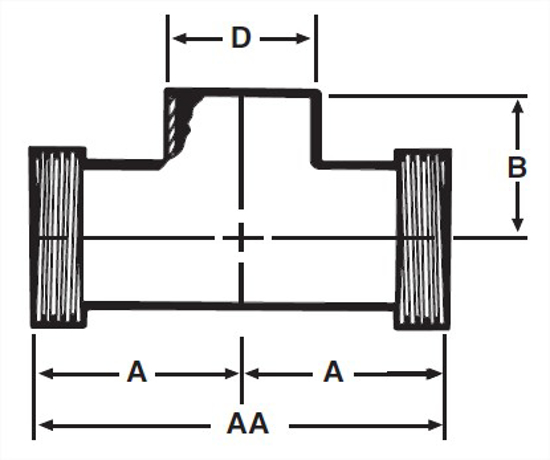

A, in.	3.187
A, mm.	80.95
B, in.	2.343
D, in.	2.5
D, mm.	63.5
T Nom Wall, in.	0.065
AA, in.	6.375
AA, mm.	161.93
Product Weight	2.02
