TEE 15 ENDS T316L 3A

Attribute name	Attribute value
Material Type	316L
Size	2.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Threaded Bevel Seat X Threaded Bevel Seat X Threaded Bevel Seat
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	Click here to request 3D Step File
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	7
Wayland Part Number	W7
Dixon Part Number	B7
Sanitary Solutions Part Number	SS7
Sanitube Part Number	7

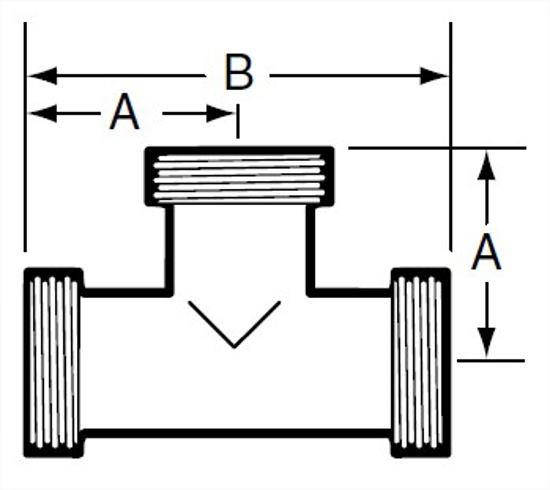

A, in.	3.187
A, mm.	80.95
B, in.	6.375
Product Weight	2.22

Material Type

316L

Industry Standard

3A

Connections

Threaded Bevel Seat X Threaded Bevel Seat X Threaded Bevel Seat

Wall Thickness

0.065

Material Test Reports

MTR’s Available Upon Request

Cad Model File

Click here to request 3D Step File

Alfa Laval Part Number

7

Dixon Part Number

B7

Sanitube Part Number

7

A, mm.

80.95

Product Weight

2.22
