TEE 15 ENDS T304 3A

Attribute name	Attribute value
Material Type	304
Size	2
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Threaded Bevel Seat X Threaded Bevel Seat X Threaded Bevel Seat
OD Tube Size	2
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	Click here to request 3D Step File
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	7
Wayland Part Number	W7
Dixon Part Number	B7
Sanitary Solutions Part Number	SS7
Sanitube Part Number	7

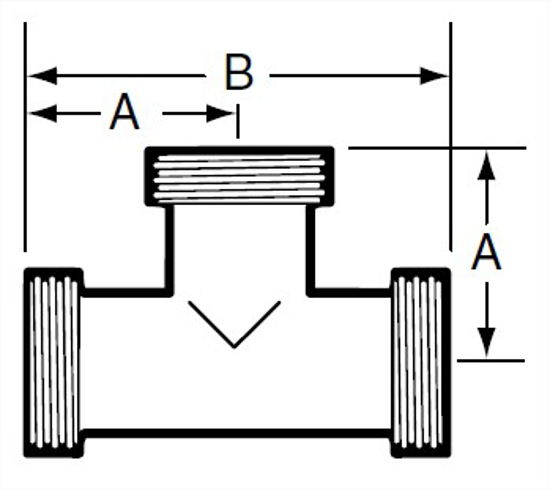

A, in.	2.781
A, mm.	70.64
B, in.	5.437
