SHORT WELD FERRULE -15 T304 3A

Attribute name	Attribute value
Material Type	304
Size	4
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Plain Bevel Seat X Weld
OD Tube Size	4
Wall Thickness	0.083
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	Click here to request 3D Step File
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	15TRF
Wayland Part Number	W15TRF
Dixon Part Number	15TRF
Sanitary Solutions Part Number	SS15TRF
Sanitube Part Number	15TRF

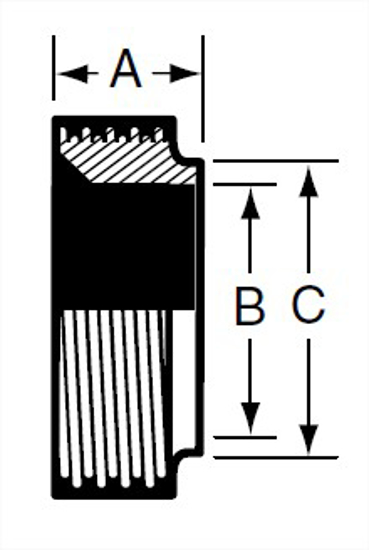

A, in.	1
A, mm.	25.4
B, in.	3.834
C, in.	4
C, mm.	101.6
Product Weight	1.18
