SHORT OUTLET RUN TEE A22 20 RA ID/32 RA OD SF1

Attribute name	Attribute value
Size	1.5
Surface Finish	PL Finish - SF1 - 20 µin Mechanical ID / 32 µin Mechanical OD
Industry Standard	ASME BPE
BPE Table #	DT-4.1.2-3
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Polish Code	PL
SF Number	SF1
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	A22
UNS #	N06022
Material Trade Names (Reference)	Hastelloy C22®
Country of Origin	USA, Israel
Material Test Reports	MTR’s Ship Automatically With Each Order
Passivated	Passivated per ASTM A967
Pressure Rating	Per current BPE standards - section DT
Cad Model File	TE7WCSW6L1.5-...STEP
Catalog File	MaxCore.pdf

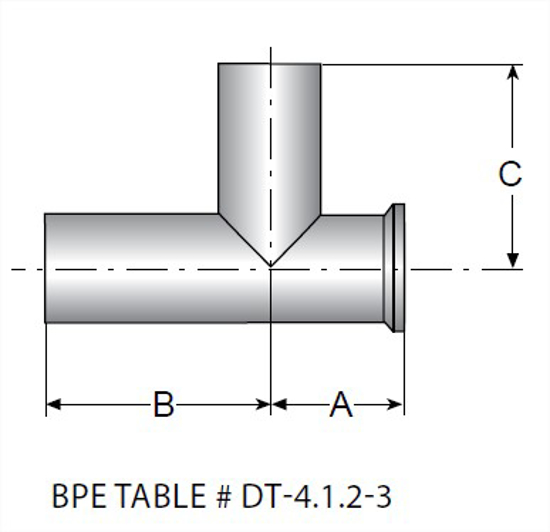

A, in.	1.375
A, mm.	34.93
B, in.	2.375
C, in.	2.375
C, mm.	60.33
Product Weight	0.9
