MTR Retrieval
Picture of SHORT OUTLET RED TEE WXWXC T316L 20 RA ID/32 RA OD SF1

SHORT OUTLET RED TEE WXWXC T316L 20 RA ID/32 RA OD SF1

Manufacturers: Egmo , VNE , Maxpure
In Stock: 10000
SKU: TE7RWWCS6L1.0X.75-PL
VNE part number: 600-00104

Please log in to view pricing
Products specifications
Attribute name Attribute value
Size 1.0X.75
Surface Finish PL Finish - SF1 - 20 µin Mechanical ID / 32 µin Mechanical OD
Industry Standard ASME BPE;3A

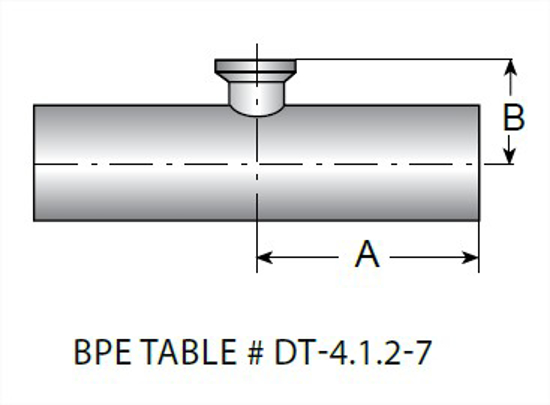

BPE Table # DT-4.1.2-7
ID / OD Polish 20 µin Mechanical ID / 32 µin Mechanical OD
Polish Code PL
SF Number SF1
OD Tube Size 1.0X.75
Wall Thickness 0.065
Material-Type 316L
Country of Origin USA, Israel
Material Test Reports MTR’s Ship Automatically With Each Order
Passivated Passivated per ASTM A967
Pressure Rating Per current BPE standards - section DT
Cad Model File TE7RWWCS6L1.0X.75-...STEP
Catalog File MaxPure BPE Fittings.pdf
Specification Document VNE Maxpure Fittings Specifications and Submittal Documentation.pdf
A, in. 2.125
A, mm. 53.98
B, in. 1.125
Product Weight 0.275
Customers who bought this item also bought
Picture of SHORT CONCENTRIC REDUCER WELD T316L 20RA ID/32 RA OD SF1

SHORT CONCENTRIC REDUCER WELD T316L 20RA ID/32 RA OD SF1

Picture of CLAMP FERRULE MEDIUM T316L 20 RA ID/32 RA OD SF1

CLAMP FERRULE MEDIUM T316L 20 RA ID/32 RA OD SF1

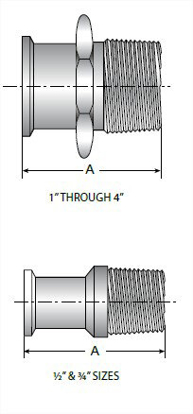

Picture of ADAPTER CLAMP X MNPT T316L 20 RA ID/32 RA OD SF1
