SHORT OUTLET RED TEE WXWXC T316L 15 RA EP ID/LT POL OD SF4

Attribute name	Attribute value
Size	1.0X.375
Surface Finish	PD Finish - SF4 - 15 µin Electropolished ID / Light Polish OD
Industry Standard	ASME BPE;3A

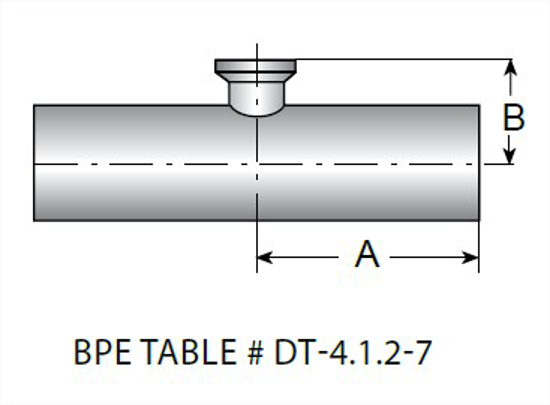

BPE Table #	DT-4.1.2-7
ID / OD Polish	15 µin Electropolished ID / Light Polish OD
Polish Code	PD
SF Number	SF4
OD Tube Size	1.0X.375
Wall Thickness	.065X.035
Material-Type	316L
Country of Origin	USA, Israel
Material Test Reports	MTR’s Ship Automatically With Each Order
Passivated	Passivated per ASTM A967
Pressure Rating	Per current BPE standards - section DT
Cad Model File	TE7RWWCS6L1.0X.375-...STEP
Catalog File	MaxPure BPE Fittings.pdf
Specification Document	VNE Maxpure Fittings Specifications and Submittal Documentation.pdf
A, in.	2.125
A, mm.	53.98
B, in.	1.125

Size

1.0X.375

Industry Standard

ASME BPE;3A

ID / OD Polish

15 µin Electropolished ID / Light Polish OD

SF Number

SF4

Wall Thickness

.065X.035

Country of Origin

USA, Israel

Passivated

Passivated per ASTM A967

Cad Model File

TE7RWWCS6L1.0X.375-...STEP

Specification Document

VNE Maxpure Fittings Specifications and Submittal Documentation.pdf

A, mm.

53.98
