SHORT ECCENTRIC REDUCER CLAMPXWELD T316L 15RAEP ID/32RAOD SF4

Attribute name	Attribute value
Size	1.0X.75
Surface Finish	PM Finish - SF4 - 15 µin Electropolished ID / 32 µin Mechanical OD
Industry Standard	ASME BPE;3A
BPE Table #	DT-4.1.3-2
ID / OD Polish	15 µin Electropolished ID / 32 µin Mechanical OD
Polish Code	PM
SF Number	SF4
OD Tube Size	1.0X.75
Wall Thickness	0.065
Material-Type	316L
Country of Origin	USA, Israel
Material Test Reports	MTR’s Ship Automatically With Each Order
Passivated	Passivated per ASTM A967
Pressure Rating	Per current BPE standards - section DT
Cad Model File	Click here to request 3D Step File
Catalog File	MaxPure BPE Fittings.pdf
Specification Document	VNE Maxpure Fittings Specifications and Submittal Documentation.pdf

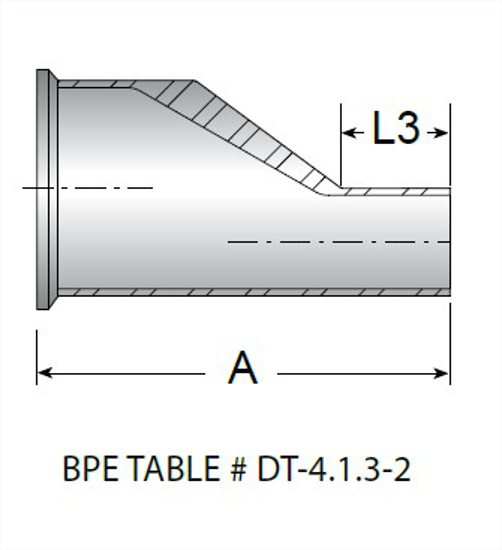

A, in.	2.625
A, mm.	66.68
B, in.	1
Product Weight	0.348

Size

1.0X.75

Industry Standard

ASME BPE;3A

ID / OD Polish

15 µin Electropolished ID / 32 µin Mechanical OD

SF Number

SF4

Wall Thickness

0.065

Country of Origin

USA, Israel

Passivated

Passivated per ASTM A967

Cad Model File

Click here to request 3D Step File

Specification Document

VNE Maxpure Fittings Specifications and Submittal Documentation.pdf

A, mm.

66.68

Product Weight

0.348
