SHORT ECCENTRIC REDUCER CLAMP 6 MO 20RA ID/32 RA OD SF1

Attribute name	Attribute value
Size	4.0X1.5
Surface Finish	PL Finish - SF1 - 20 µin Mechanical ID / 32 µin Mechanical OD
Industry Standard	ASME BPE
BPE Table #	#N/A
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Polish Code	PL
SF Number	SF1
OD Tube Size	4.0X1.5
Wall Thickness	.083X.065
Material-Type	6MO
UNS #	N08367
Material Trade Names (Reference)	AL6XN, AL-6XN®, ULTRA 6XN®
Country of Origin	USA, Israel
Material Test Reports	MTR’s Ship Automatically With Each Order
Passivated	Passivated per ASTM A967
Pressure Rating	Per current BPE standards - section DT
Cad Model File	Click here to request 3D Step File
Catalog File	MaxCore.pdf

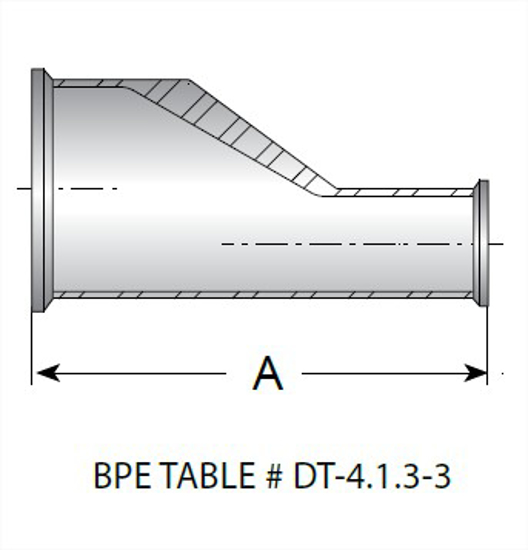

A, mm.	0

Size

4.0X1.5

Industry Standard

ASME BPE

ID / OD Polish

20 µin Mechanical ID / 32 µin Mechanical OD

SF Number

SF1

Wall Thickness

.083X.065

UNS #

N08367

Country of Origin

USA, Israel

Passivated

Passivated per ASTM A967

Cad Model File

Click here to request 3D Step File

A, mm.

0
