SHORT CONCENTRIC REDUCER CLAMPXWELD T316L 15RAEP ID/32RASF4

Attribute name	Attribute value
Size	2.5X.75
Surface Finish	PM Finish - SF4 - 15 µin Electropolished ID / 32 µin Mechanical OD
Industry Standard	ASME BPE;3A

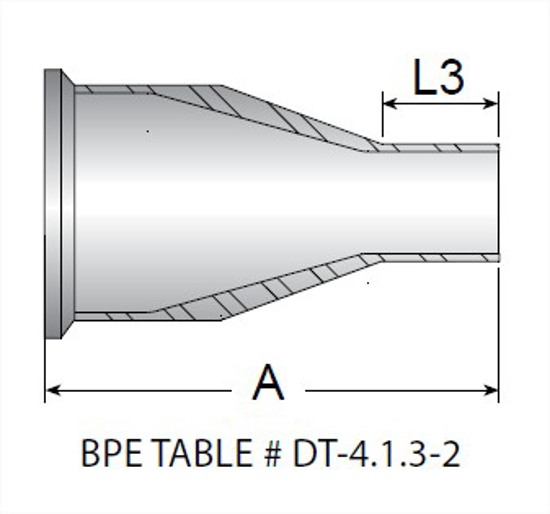

BPE Table #	DT-4.1.3-2
ID / OD Polish	15 µin Electropolished ID / 32 µin Mechanical OD
Polish Code	PM
SF Number	SF4
OD Tube Size	2.5X.75
Wall Thickness	0.065
Material-Type	316L
Country of Origin	USA, Israel
Material Test Reports	MTR’s Ship Automatically With Each Order
Passivated	Passivated per ASTM A967
Pressure Rating	Per current BPE standards - section DT
Cad Model File	Click here to request 3D Step File
Catalog File	MaxPure BPE Fittings.pdf
Specification Document	VNE Maxpure Fittings Specifications and Submittal Documentation.pdf
A, mm.	0
Product Weight	0.688
