SEE TE7WWCS ITEM

Attribute name	Attribute value
Material Type	304
Size	2
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld X Clamp
OD Tube Size	2
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E7WWCS2.0.STEP
Catalog File	Fittings Catalog.pdf
Steel O’brien Part Number	7WWMS-2-7-304

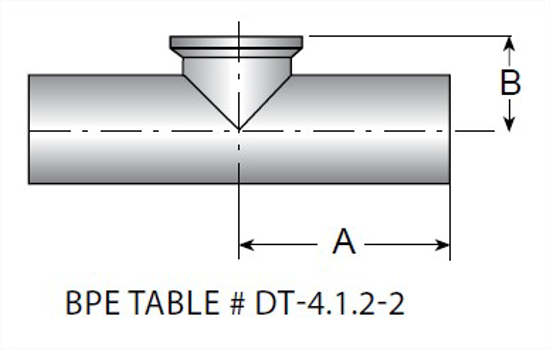

A, in.	5.75
A, mm.	146.05
B, in.	1.625
T Nom Wall, in.	0.065

Material Type

304

Industry Standard

3A

Connections

Weld X Weld X Clamp

Wall Thickness

0.065

Material Test Reports

COC Available for 304 Materials

Cad Model File

E7WWCS2.0.STEP

Steel O’brien Part Number

7WWMS-2-7-304

A, mm.

146.05

T Nom Wall, in.

0.065
