RUBBER HOSE ADAPTER T304

Attribute name	Attribute value
Material Type	304
Size	2.5
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Hose Barb
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG14RT2.5.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	14MPHR
Steel O’brien Part Number	14MPHR-2.5-304
Wayland Part Number	W14MPHR
Dixon Part Number	14MPHR
Sanitary Solutions Part Number	SS14MPHR
Sanitube Part Number	14MPHR

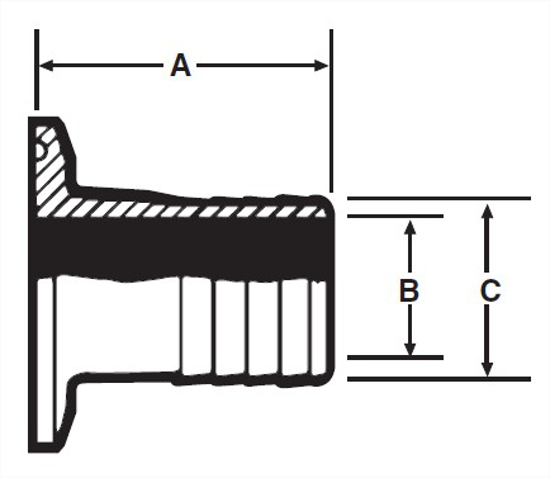

A, in.	2.312
A, mm.	58.72
B, in.	2.37
C, in.	2.5
C, mm.	63.5
Product Weight	0.38

Material Type

304

ID / OD Polish

32 µin Mechanical ID / 32 µin Mechanical OD

OD Tube Size

2.5

Material-Type

304

Passivated

Special Request

Pressure Table

clamppressure.pdf

Catalog File

Fittings Catalog.pdf

Steel O’brien Part Number

14MPHR-2.5-304

Dixon Part Number

14MPHR

Sanitube Part Number

14MPHR

A, mm.

58.72

C, in.

2.5

Product Weight

0.38
