REDUCING TEE WELD X WELD X CLA22 20RA EP ID/ 32 RA OD SF5

Attribute name	Attribute value
Size	3.0X1.5
Surface Finish	PO Finish - SF5 - 20 µin Electropolished ID / 32 µin Mechanical OD
Industry Standard	ASME BPE
BPE Table #	N/A
ID / OD Polish	20 µin Electropolished ID / 32 µin Mechanical OD
Polish Code	PO
SF Number	SF5
OD Tube Size	3.0X1.5
Wall Thickness	0.065
Material-Type	A22
UNS #	N06022
Material Trade Names (Reference)	Hastelloy C22®
Country of Origin	USA, Israel
Material Test Reports	MTR’s Ship Automatically With Each Order
Passivated	Passivated per ASTM A967
Pressure Rating	Per current BPE standards - section DT
Cad Model File	TE7RWWC6L3.0X1.5-...STEP
Catalog File	MaxCore.pdf

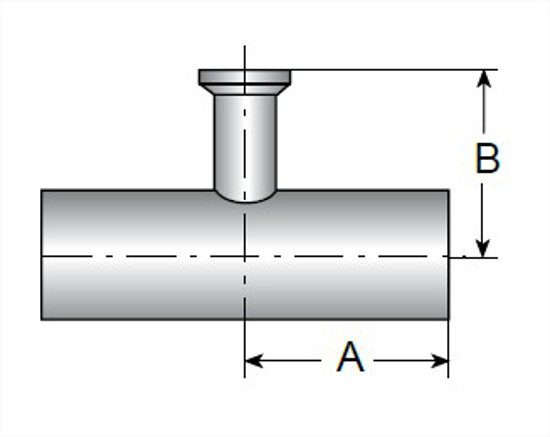

A, in.	3.375
A, mm.	85.73
B, in.	3.625
Product Weight	1.925

Surface Finish

PO Finish - SF5 - 20 µin Electropolished ID / 32 µin Mechanical OD

BPE Table #

N/A

Polish Code

PO

OD Tube Size

3.0X1.5

Material-Type

A22

Material Trade Names (Reference)

Hastelloy C22®

Material Test Reports

MTR’s Ship Automatically With Each Order

Pressure Rating

Per current BPE standards - section DT

Catalog File

MaxCore.pdf

A, mm.

85.73

Product Weight

1.925
