REDUCING TEE CLAMP T316L 20 RA ID/32 RA OD SF1

Attribute name	Attribute value
Size	2.5X2.0
Surface Finish	PL Finish - SF1 - 20 µin Mechanical ID / 32 µin Mechanical OD
Industry Standard	ASME BPE;3A
BPE Table #	DT-4.1.2-8
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Polish Code	PL
SF Number	SF1
OD Tube Size	2.5X2.0
Wall Thickness	0.065
Material-Type	316L
Country of Origin	USA, Israel
Material Test Reports	MTR’s Ship Automatically With Each Order
Passivated	Passivated per ASTM A967
Pressure Rating	Per current BPE standards - section DT
Cad Model File	TEG7R6L2.5X2.0-...STEP
Catalog File	MaxPure BPE Fittings.pdf

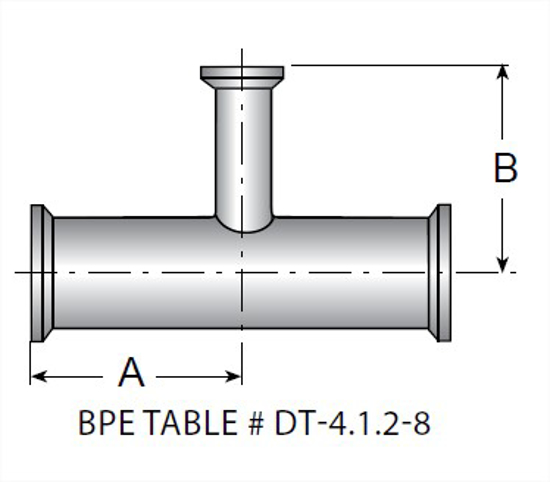

A, in.	3.625
A, mm.	92.08
B, in.	3.625
Product Weight	1.57
