REDUCING TEE BUTTWELD T316L 20 RA ID/LT POL OD SF1

Attribute name	Attribute value
Size	4.0X.5
Surface Finish	PC Finish - SF1 - 20 µin Mechanical ID / Light Polish OD
Industry Standard	ASME BPE;3A

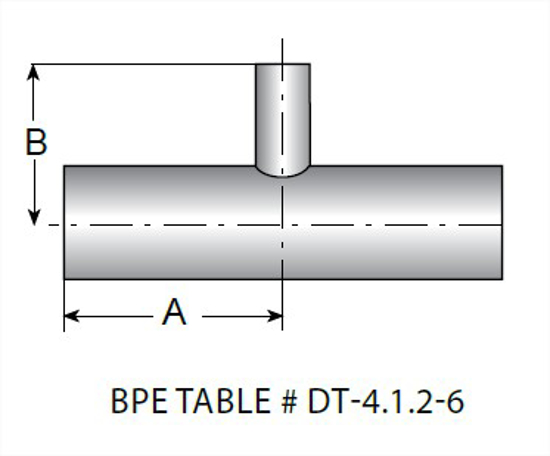

BPE Table #	DT-4.1.2-6
ID / OD Polish	20 µin Mechanical ID / Light Polish OD
Polish Code	PC
SF Number	SF1
OD Tube Size	4.0X.5
Wall Thickness	.083X.065
Material-Type	316L
Country of Origin	USA, Israel
Material Test Reports	MTR’s Ship Automatically With Each Order
Passivated	Passivated per ASTM A967
Pressure Rating	Per current BPE standards - section DT
Cad Model File	TE7RWWW6L4.0X.5-...STEP
Catalog File	MaxPure BPE Fittings.pdf
Specification Document	VNE Maxpure Fittings Specifications and Submittal Documentation.pdf
A, in.	4.125
A, mm.	104.78
B, in.	3.625
Product Weight	2.121

Size

4.0X.5

Industry Standard

ASME BPE;3A

ID / OD Polish

20 µin Mechanical ID / Light Polish OD

SF Number

SF1

Wall Thickness

.083X.065

Country of Origin

USA, Israel

Passivated

Passivated per ASTM A967

Cad Model File

TE7RWWW6L4.0X.5-...STEP

Specification Document

VNE Maxpure Fittings Specifications and Submittal Documentation.pdf

A, mm.

104.78

Product Weight

2.121
