REDUCING CLAMP 90 DEG ELBOW 304 #7 3A

Attribute name	Attribute value
Material Type	304
Size	2.0X1.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp
OD Tube Size	2.0X1.5
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG2C31CC2.0X1.5.STEP
Catalog File	Fittings Catalog.pdf
Steel O’brien Part Number	2CMP-31MP-2X1.5-304

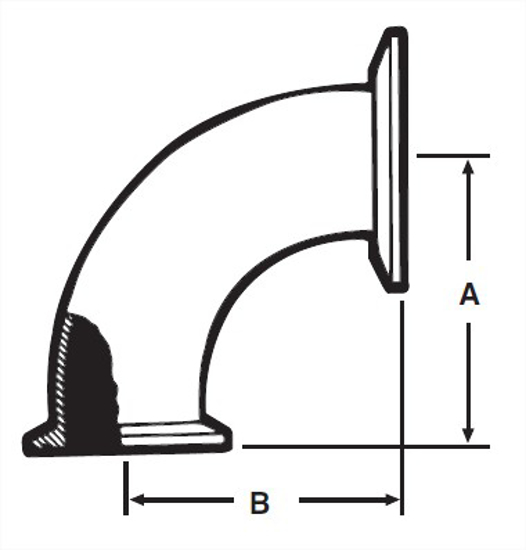

A, in.	2.75
A, mm.	69.85
B, in.	2.75
Product Weight	0.58

Material Type

304

Industry Standard

3A

Connections

Clamp X Clamp

Wall Thickness

0.065

Material Test Reports

COC Available for 304 Materials

Pressure Rating

See PSI Service Ratings for Clamps

Cad Model File

EG2C31CC2.0X1.5.STEP

Steel O’brien Part Number

2CMP-31MP-2X1.5-304

A, mm.

69.85

Product Weight

0.58
