RECESSLESS FERRULE, ROLL-ON, T316L

Attribute name	Attribute value
Material Type	316L
Size	4
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Roll On
OD Tube Size	4
Wall Thickness	0.083
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	Click here to request 3D Step File
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	14RMP
Steel O’brien Part Number	14WMP-4-316
Wayland Part Number	W14RMP
Dixon Part Number	14RMP
Sanitary Solutions Part Number	SS14RMP
Sanitube Part Number	14RMP

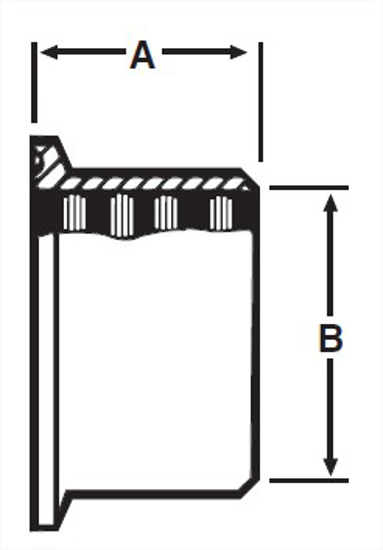

A, in.	1.5
A, mm.	38.1
B, in.	4
Product Weight	0.76

Material Type

316L

ID / OD Polish

32 µin Mechanical ID / 32 µin Mechanical OD

OD Tube Size

4

Material-Type

316L

Passivated

Special Request

Pressure Table

clamppressure.pdf

Catalog File

Fittings Catalog.pdf

Steel O’brien Part Number

14WMP-4-316

Dixon Part Number

14RMP

Sanitube Part Number

14RMP

A, mm.

38.1

Product Weight

0.76
