PLAIN WELDING FERRULE T316L 3A

Attribute name	Attribute value
Material Type	316L
Size	2.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Plain Bevel Seat X Weld
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	Click here to request 3D Step File
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L14A7
Wayland Part Number	W14A
Dixon Part Number	14A
Sanitary Solutions Part Number	SS14A
Sanitube Part Number	14A

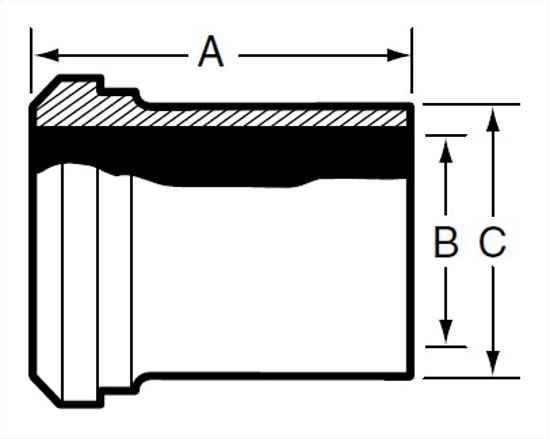

A, in.	1.75
A, mm.	44.45
B, in.	2.37
C, in.	2.5
C, mm.	63.5
Product Weight	0.48

Material Type

316L

Industry Standard

3A

Connections

Plain Bevel Seat X Weld

Wall Thickness

0.065

Material Test Reports

MTR’s Available Upon Request

Cad Model File

Click here to request 3D Step File

Alfa Laval Part Number

L14A7

Dixon Part Number

14A

Sanitube Part Number

14A

A, mm.

44.45

C, in.

2.5

Product Weight

0.48
