FEMALE SCH.5 E-LINE SHORT WELD FERRULE T316L

Attribute name	Attribute value
Material Type	316L
Size	4
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line X Schedule 5 Pipe
OD Tube Size	4
Wall Thickness	0.083
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	Click here to request 3D Step File
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	HDI-15WI
Wayland Part Number	W15WI
Dixon Part Number	15WI
Sanitary Solutions Part Number	SS15WI
Sanitube Part Number	15WI

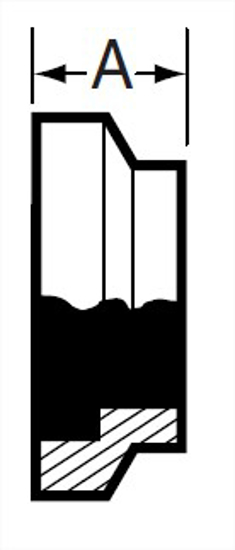

A, in.	4.5
A, mm.	114.3
B, in.	4.334
C, in.	5.882
C, mm.	149.4
D, in.	1.343
D, mm.	34.11
T Nom Wall, in.	0.083
Product Weight	1.883
