FEMALE E-LINE FERRULE SHORT T316L 3A

Manufacturer: VNE
In Stock: 10000
SKU: E15WI-6L1.0
VNE part number: 695-00007

Please log in to view pricing

Products specifications
Attribute name Attribute value
Material Type 316L
Size 1
Industry Standard 3A
ID / OD Polish 32 µin Mechanical ID / 32 µin Mechanical OD
Connections Female E-Line X Weld
OD Tube Size 1
Wall Thickness 0.065
Material-Type 316L
Material Test Reports MTR’s Available Upon Request
Passivated Special Request
Cad Model File E15WI 1.0.STEP
Catalog File Fittings Catalog.pdf
Alfa Laval Part Number HDI-15WI
Wayland Part Number W15WI
Dixon Part Number 15WI
Sanitary Solutions Part Number SS15WI
Sanitube Part Number 15WI

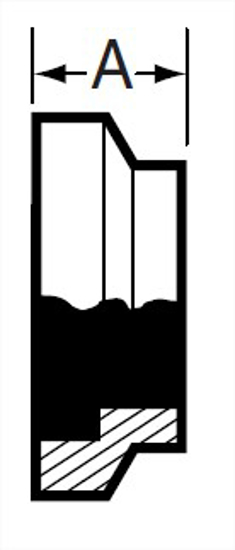

A, in. 0.781
A, mm. 19.84
Product Weight 0.18
