ECCENTRIC REDUCER LARGE END TH READ SMALL 14&13H T316L 3A

Attribute name	Attribute value
Material Type	316L
Size	2.0X1.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Threaded Bevel Seat X Plain Bevel Seat
OD Tube Size	2.0X1.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	32TP2.0X1.5.STEP
Catalog File	Fittings Catalog.pdf

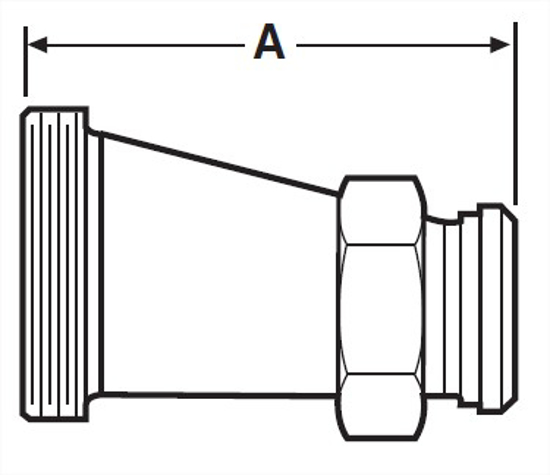

A, in.	4.218
A, mm.	107.14

Material Type

316L

Industry Standard

3A

Connections

Threaded Bevel Seat X Plain Bevel Seat

Wall Thickness

0.065

Material Test Reports

MTR’s Available Upon Request

Cad Model File

32TP2.0X1.5.STEP

A, in.

4.218
