ECCENTRIC REDUCER LARGE END TH READ SMALL 14&13H T304 3A

Attribute name	Attribute value
Material Type	304
Size	2.5X2.0
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Threaded Bevel Seat X Plain Bevel Seat
OD Tube Size	2.5X2.0
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	32TP2.5X2.0.STEP
Catalog File	Fittings Catalog.pdf

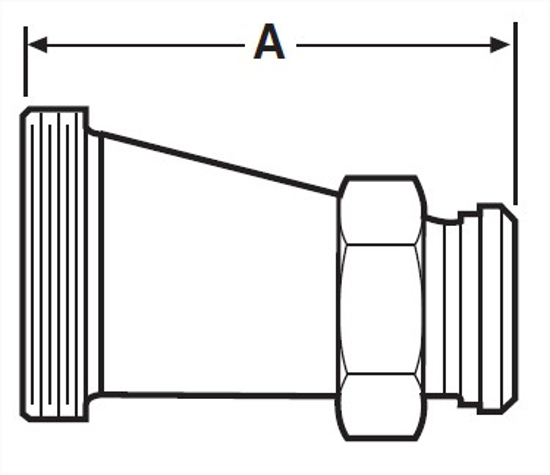

A, in.	4.343
A, mm.	110.31
