ECCENTRIC REDUCER CLAMP X WELD T304 3A

Attribute name	Attribute value
Material Type	304
Size	4.0X2.0
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Weld
OD Tube Size	4.0X2.0
Wall Thickness	.083X.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E32CW4.0X2.0.STEP
Catalog File	Fittings Catalog.pdf

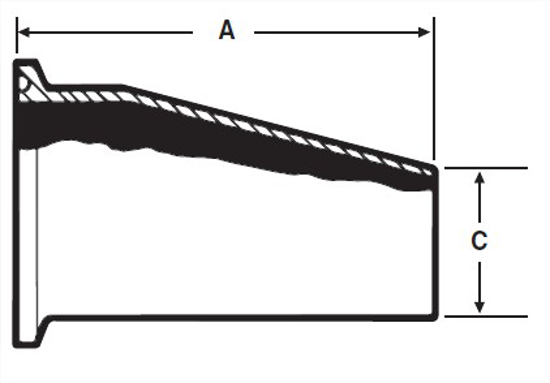

A, in.	8.625
A, mm.	219.08
C, in.	2
C, mm.	50.8
T Nom Wall, in.	0.065
Product Weight	1.86

Material Type

304

Industry Standard

3A

Connections

Clamp X Weld

Wall Thickness

.083X.065

Material Test Reports

COC Available for 304 Materials

Cad Model File

E32CW4.0X2.0.STEP

A, in.

8.625

C, in.

2

T Nom Wall, in.

0.065
