ECCENTRIC REDUCER CLAMP X WELD T304 3A

Attribute name	Attribute value
Material Type	304
Size	2.5X2.0
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Weld
OD Tube Size	2.5X2.0
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E32CW2.5X2.0.STEP
Catalog File	Fittings Catalog.pdf

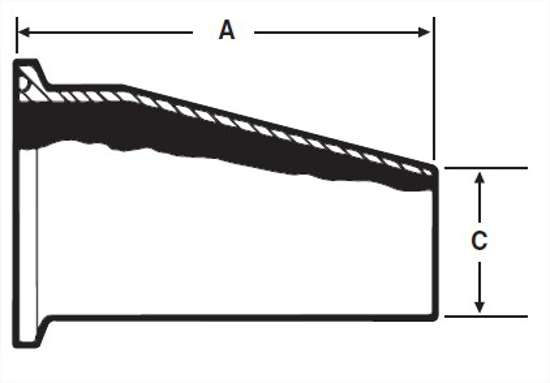

A, in.	2.5
A, mm.	63.5
C, in.	2
C, mm.	50.8
T Nom Wall, in.	0.065
Product Weight	0.44

Size

2.5X2.0

ID / OD Polish

32 µin Mechanical ID / 32 µin Mechanical OD

OD Tube Size

2.5X2.0

Material-Type

304

Passivated

Special Request

Catalog File

Fittings Catalog.pdf

A, mm.

63.5

C, mm.

50.8

Product Weight

0.44
