ECCENTRIC REDUCER CLAMP T316L 3A

Attribute name	Attribute value
Material Type	316L
Size	4.0X3.0
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp
OD Tube Size	4.0X3.0
Wall Thickness	.083X.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG32CC4.0X3.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	32-14MP
Steel O’brien Part Number	32-14MP-4X3-316
Wayland Part Number	W32-14MP
Dixon Part Number	B3214MP
Sanitary Solutions Part Number	SS32-14MP
Sanitube Part Number	3214MP

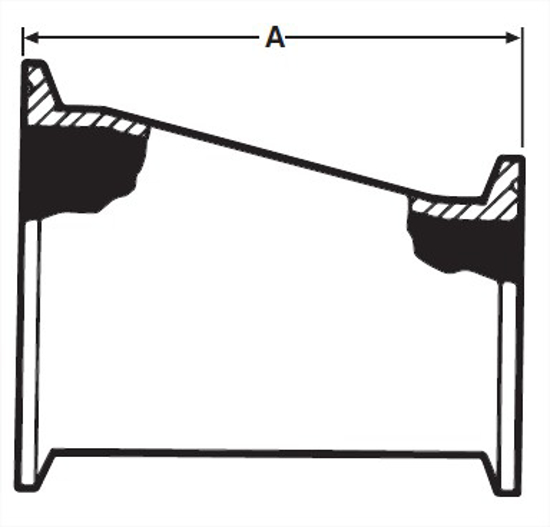

A, in.	5.125
A, mm.	130.18
Product Weight	1.44
