ECCENTRIC REDUCER 14&13H ENDS T316L 3A

Attribute name	Attribute value
Material Type	316L
Size	3.0X2.0
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Plain Bevel Seat X Plain Bevel Seat
OD Tube Size	3.0X2.0
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	32-14F3.0X2.0.STEP
Catalog File	Fittings Catalog.pdf

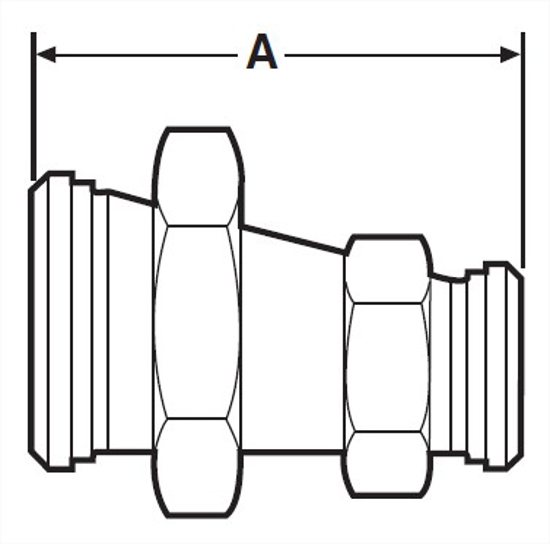

A, in.	6.437
A, mm.	163.5
Product Weight	4.1

Material Type

316L

Industry Standard

3A

Connections

Plain Bevel Seat X Plain Bevel Seat

Wall Thickness

0.065

Material Test Reports

MTR’s Available Upon Request

Cad Model File

32-14F3.0X2.0.STEP

A, in.

6.437

Product Weight

4.1
