ECC. REDUCER LGE END 14 TO CLAMP T316L 3A

Attribute name	Attribute value
Material Type	316L
Size	2.0X1.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Plain Bevel Seat X Clamp
OD Tube Size	2.0X1.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG32PC2.0X1.5.STEP
Catalog File	Fittings Catalog.pdf
Steel O’brien Part Number	32PMP-2X1.5-316

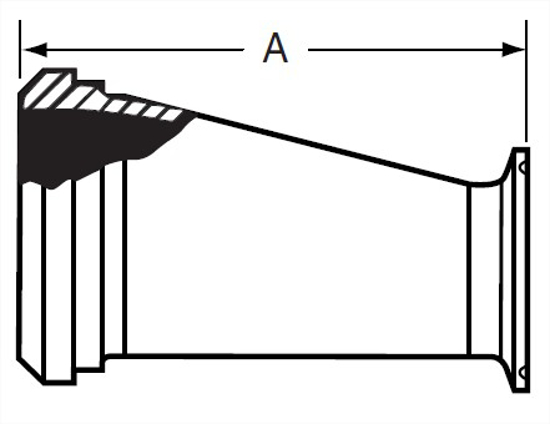

A, in.	3.218
A, mm.	81.74

Material Type

316L

Industry Standard

3A

Connections

Plain Bevel Seat X Clamp

Wall Thickness

0.065

Material Test Reports

MTR’s Available Upon Request

Pressure Rating

See PSI Service Ratings for Clamps

Cad Model File

EG32PC2.0X1.5.STEP

Steel O’brien Part Number

32PMP-2X1.5-316

A, mm.

81.74
