VNE Stainless | E-LINE MALE CAP

Attribute name	Attribute value
Material Type	316L
Size	2
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line
OD Tube Size	2
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	Click here to request 3D Step File
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	HDI-16AI-14I
Wayland Part Number	W16AI-14I
Dixon Part Number	16AI-14I
Sanitary Solutions Part Number	SS16AI-14I
Sanitube Part Number	16AI-14I

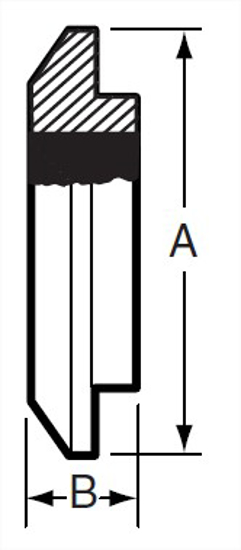

A, in.	3.317
A, mm.	84.25
B, in.	2.746
C, in.	0.75
C, mm.	19.05

Material Type

316L

ID / OD Polish

32 µin Mechanical ID / 32 µin Mechanical OD

OD Tube Size

2

Material-Type

316L

Passivated

Special Request

Catalog File

Fittings Catalog.pdf

Wayland Part Number

W16AI-14I

Sanitary Solutions Part Number

SS16AI-14I

A, in.

3.317

B, in.

2.746

C, mm.

19.05

E-LINE MALE CAP - SCH 5 T316L
