E-LINE ECC. REDUCER MALE X FEMALE T316L 3A

Attribute name	Attribute value
Material Type	316L
Size	1.5X1.0
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line X Female E-Line
OD Tube Size	1.5X1.0
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	Click here to request 3D Step File
Catalog File	Fittings Catalog.pdf

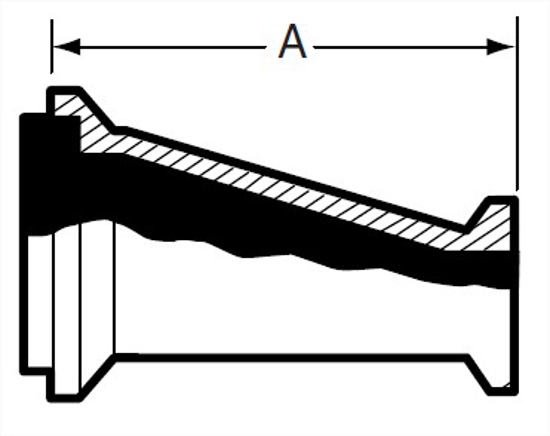

A, in.	3.531
A, mm.	89.69
