DIN MALE THREADED FERRULE T316

Attribute name	Attribute value
Material Type	316L
Size	DN65
Industry Standard	Din 11851;Din 11853
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Din 11851 Thread X Weld
OD Tube Size	DN65
Wall Thickness	2
Material-Type	316L
Country of Origin	Germany
Material Test Reports	MTR’s Available Upon Request
Cad Model File	2S-KURZ-NW65.STEP
Catalog File	Fittings Catalog.pdf

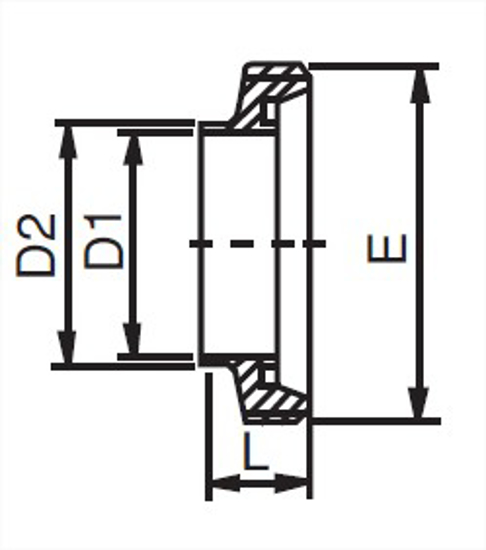

D1, in.	2.6
D1, mm.	66
D2, in.	2.76
D2, mm.	70
E, in.	Rd 95 x 1/6"
L, in.	0.98
L, mm.	25

Material Type

316L

Industry Standard

Din 11851;Din 11853

Connections

Din 11851 Thread X Weld

Wall Thickness

2

Country of Origin

Germany

Cad Model File

2S-KURZ-NW65.STEP

D1, in.

2.6

D2, in.

2.76

E, in.

Rd 95 x 1/6"

L, mm.

25
