DIN MALE THREADED FERRULE T316

Attribute name	Attribute value
Material Type	316L
Size	DN40
Industry Standard	Din 11851;Din 11853
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Din 11851 Thread X Weld
OD Tube Size	DN40
Wall Thickness	1.5
Material-Type	316L
Country of Origin	Germany
Material Test Reports	MTR’s Available Upon Request
Cad Model File	2S-KURZ-NW40.STEP
Catalog File	Fittings Catalog.pdf

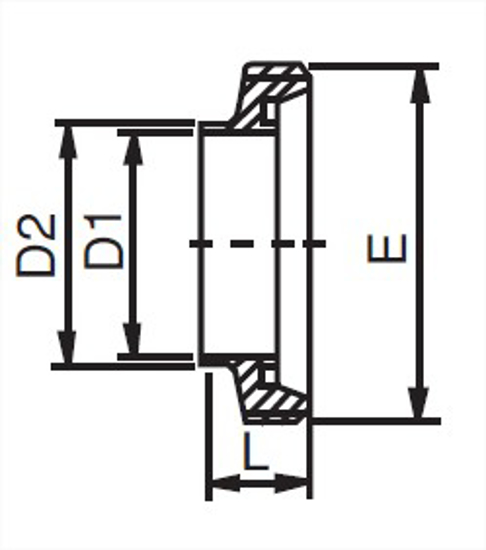

D1, in.	1.5
D1, mm.	38
D2, in.	1.61
D2, mm.	41
E, in.	Rd 65 X 1/6"
L, in.	0.87
L, mm.	22

Material Type

316L

Industry Standard

Din 11851;Din 11853

Connections

Din 11851 Thread X Weld

Wall Thickness

1.5

Country of Origin

Germany

Cad Model File

2S-KURZ-NW40.STEP

D1, in.

1.5

D2, in.

1.61

E, in.

Rd 65 X 1/6"

L, mm.

22
