DIN MALE THREADED FERRULE 304

Attribute name	Attribute value
Material Type	304
Size	DN65
Industry Standard	Din 11851;Din 11853
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Din 11851 Thread X Weld
OD Tube Size	DN65
Wall Thickness	2
Material-Type	304
Country of Origin	Germany
Material Test Reports	COC Available for 304 Materials
Cad Model File	2S-KURZ-NW65.STEP
Catalog File	Fittings Catalog.pdf

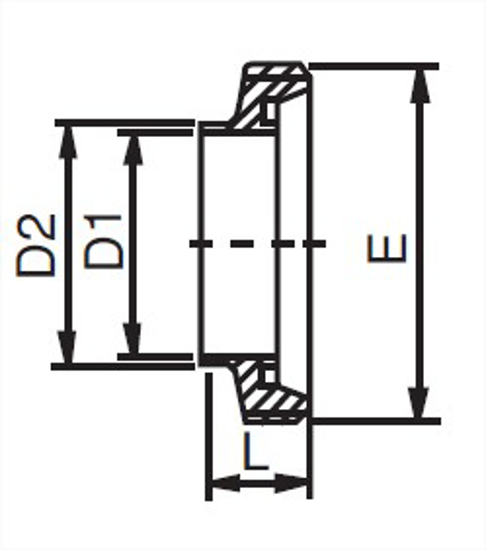

D1, in.	2.6
D1, mm.	66
D2, in.	2.76
D2, mm.	70
E, in.	Rd 95 x 1/6"
L, in.	0.98
L, mm.	25
Product Weight	0.7

Size

DN65

ID / OD Polish

32 µin Mechanical ID / 32 µin Mechanical OD

OD Tube Size

DN65

Material-Type

304

Material Test Reports

COC Available for 304 Materials

Catalog File

Fittings Catalog.pdf

D1, mm.

66

D2, mm.

70

L, in.

0.98

Product Weight

0.7
