DIN MALE THREADED FERRULE 304

Attribute name	Attribute value
Material Type	304
Size	DN50
Industry Standard	Din 11851;Din 11853
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Din 11851 Thread X Weld
OD Tube Size	DN50
Wall Thickness	1.5
Material-Type	304
Country of Origin	Germany
Material Test Reports	COC Available for 304 Materials
Cad Model File	2S-KURZ-NW50.STEP
Catalog File	Fittings Catalog.pdf

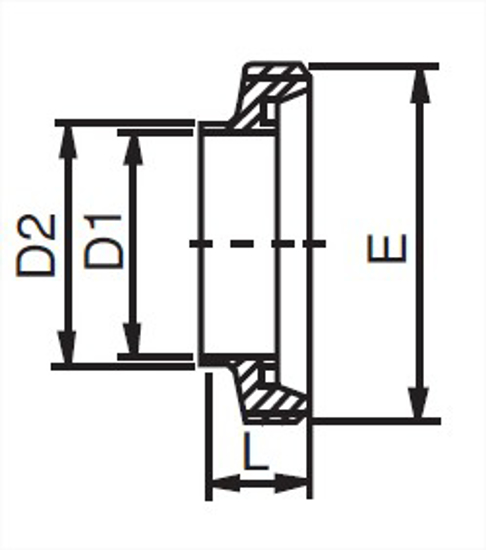

D1, in.	1.97
D1, mm.	50
D2, in.	2.09
D2, mm.	53
E, in.	Rd 78 x 1/6"
L, in.	0.91
L, mm.	23
Product Weight	0.44

Size

DN50

ID / OD Polish

32 µin Mechanical ID / 32 µin Mechanical OD

OD Tube Size

DN50

Material-Type

304

Material Test Reports

COC Available for 304 Materials

Catalog File

Fittings Catalog.pdf

D1, mm.

50

D2, mm.

53

L, in.

0.91

Product Weight

0.44
