DIN LINER BLANK CAP T316

Attribute name	Attribute value
Material Type	316L
Size	DN40
Industry Standard	Din 11851;Din 11853
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Din 11851 Cap
OD Tube Size	DN40
Material-Type	316L
Country of Origin	Germany
Material Test Reports	MTR’s Available Upon Request
Cad Model File	74-CAP NW40.STP
Catalog File	Fittings Catalog.pdf

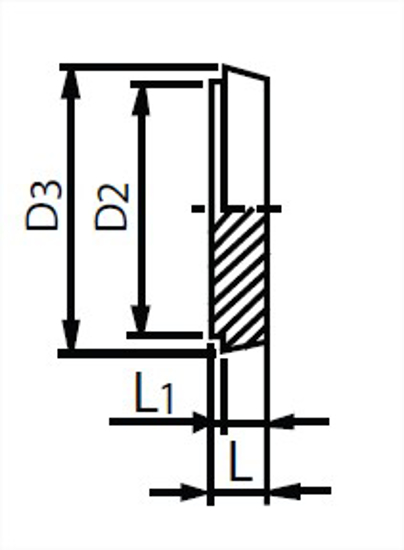

D2, in.	1.92
D2, mm.	48.8
D3, in.	2.2
D3, mm.	56
L, in.	0.53
L, mm.	13.5
L1, in.	0.14
L1, mm.	3.5
