DIN FEMALE PLAIN FERRULE T316

Attribute name	Attribute value
Material Type	316L
Size	DN65
Industry Standard	Din 11851;Din 11853
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Din 11851 Plain End X Weld
OD Tube Size	DN65
Wall Thickness	2
Material-Type	316L
Country of Origin	Germany
Material Test Reports	MTR’s Available Upon Request
Cad Model File	3S-KURZ NW65.STEP
Catalog File	Fittings Catalog.pdf

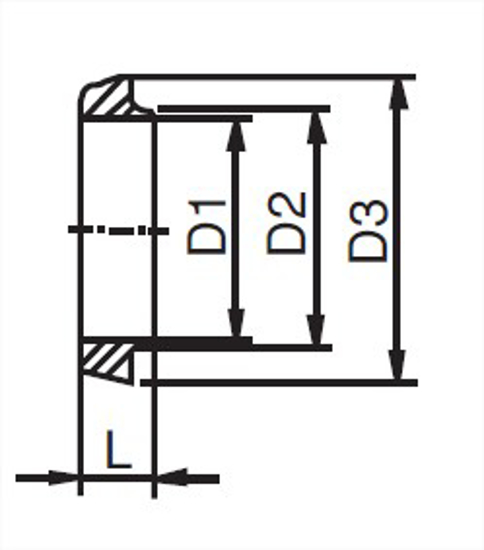

D1, in.	2.6
D1, mm.	66
D2, in.	2.76
D2, mm.	70
D3, in.	3.39
D3, mm.	86
L, in.	0.67
L, mm.	17

Size

DN65

ID / OD Polish

32 µin Mechanical ID / 32 µin Mechanical OD

OD Tube Size

DN65

Material-Type

316L

Material Test Reports

MTR’s Available Upon Request

Catalog File

Fittings Catalog.pdf

D1, mm.

66

D2, mm.

70

D3, mm.

86

L, mm.

17
