DIN 50 THREAD X 2.0 INCH WELD FERRULE T316 MALE

Attribute name	Attribute value
Material Type	316L
Size	2
Industry Standard	Din 11851;Din 11853
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Din 11851 Thread X Weld
OD Tube Size	2
Wall Thickness	0.065
Material-Type	316L
Country of Origin	Germany
Material Test Reports	MTR’s Available Upon Request
Cad Model File	2SRW 50X2.0.STEP
Catalog File	Fittings Catalog.pdf

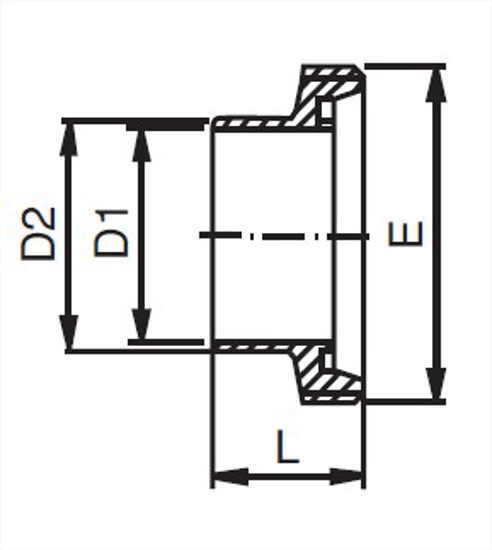

D1, in.	1.88
D1, mm.	47.8
D2, in.	2
D2, mm.	50.8
E, in.	Rd 78 x 1/6"
L, in.	1.38
L, mm.	35
Product Weight	0.7
