DIN 25 THREAD X 1.0 INCH WELD FERRULE T316 MALE

Attribute name	Attribute value
Material Type	316L
Size	1
Industry Standard	Din 11851;Din 11853
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Din 11851 Thread X Weld
OD Tube Size	1
Wall Thickness	0.065
Material-Type	316L
Country of Origin	Germany
Material Test Reports	MTR’s Available Upon Request
Cad Model File	Click here to request 3D Step File
Catalog File	Fittings Catalog.pdf

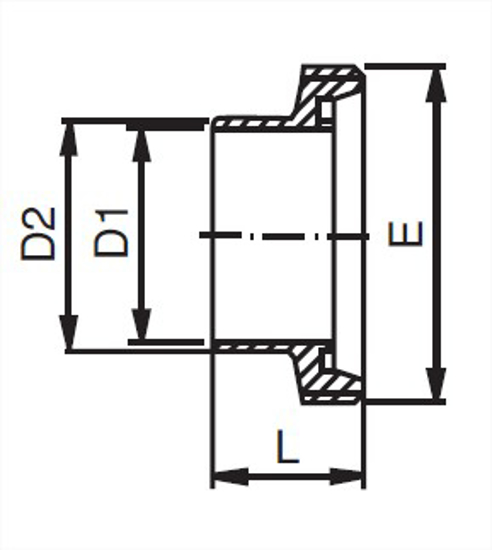

D1, in.	0.9
D1, mm.	22.9
D2, in.	1
D2, mm.	25.4
E, in.	Rd 52 x 1/6"
L, in.	1.14
L, mm.	29
Product Weight	0.32

Size

1

ID / OD Polish

32 µin Mechanical ID / 32 µin Mechanical OD

OD Tube Size

1

Material-Type

316L

Material Test Reports

MTR’s Available Upon Request

Catalog File

Fittings Catalog.pdf

D1, mm.

22.9

D2, mm.

25.4

L, in.

1.14

Product Weight

0.32
