CROSS THREAD ENDS T316L 3A

Attribute name	Attribute value
Material Type	316L
Size	1.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Threaded Bevel Seat X Threaded Bevel Seat X Threaded Bevel Seat X Threaded Bevel Seat
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	Click here to request 3D Step File
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	9
Wayland Part Number	W9
Dixon Part Number	B9
Sanitary Solutions Part Number	SS9
Sanitube Part Number	9

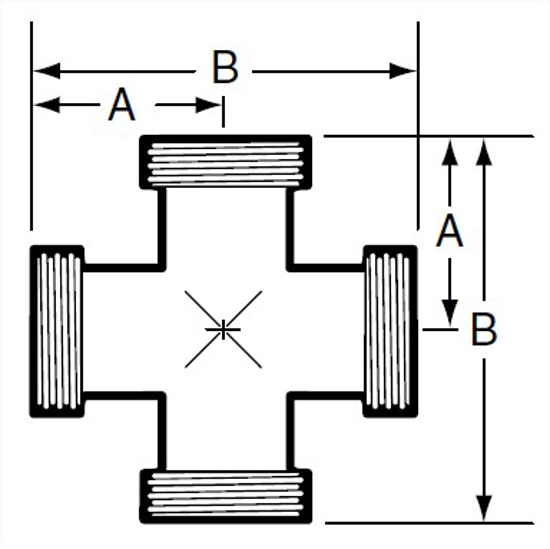

A, in.	2.375
A, mm.	60.33
B, in.	4.75
Product Weight	1.42

Material Type

316L

Industry Standard

3A

Connections

Threaded Bevel Seat X Threaded Bevel Seat X Threaded Bevel Seat X Threaded Bevel Seat

Wall Thickness

0.065

Material Test Reports

MTR’s Available Upon Request

Cad Model File

Click here to request 3D Step File

Alfa Laval Part Number

9

Dixon Part Number

B9

Sanitube Part Number

9

A, mm.

60.33

Product Weight

1.42
