CROSS E-LINE ALL ENDS E15WI T304 3A

Attribute name	Attribute value
Material Type	304
Size	1
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Female E-Line X Female E-Line X Female E-Line X Female E-Line
OD Tube Size	1
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	Click here to request 3D Step File
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	HDI-9
Wayland Part Number	W9I
Dixon Part Number	B9I
Sanitary Solutions Part Number	SS9I
Sanitube Part Number	9I

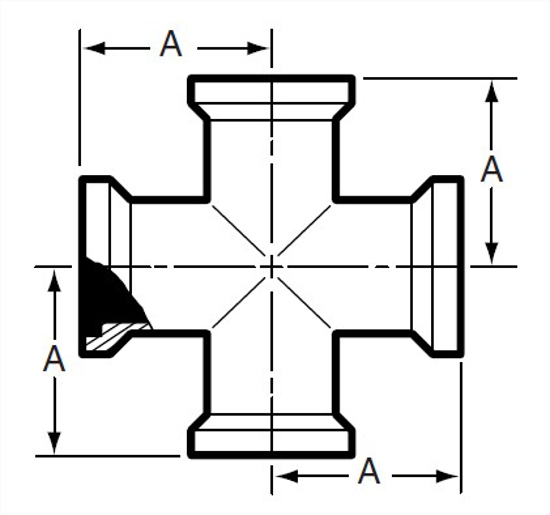

A, in.	1.875
A, mm.	47.63
Product Weight	1.08
