CONCENTRIC REDUCER CLAMP X WELD T304 #7 3A

Attribute name	Attribute value
Material Type	304
Size	2.0X1.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Weld
OD Tube Size	2.0X1.5
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E31CW2.0X1.5.STEP
Catalog File	Fittings Catalog.pdf

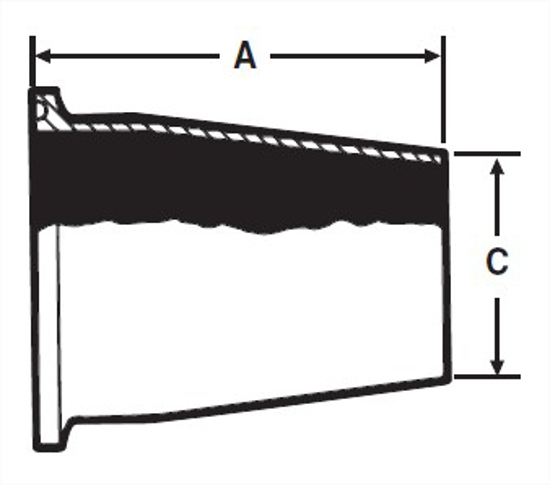

A, in.	2.5
A, mm.	63.5
C, in.	1.5
C, mm.	38.1
T Nom Wall, in.	0.065
Product Weight	0.34

Size

2.0X1.5

ID / OD Polish

32 µin Mechanical ID / 32 µin Mechanical OD

OD Tube Size

2.0X1.5

Material-Type

304

Passivated

Special Request

Catalog File

Fittings Catalog.pdf

A, mm.

63.5

C, mm.

38.1

Product Weight

0.34
