CONCENTRIC REDUCER CLAMP T316L 3A

Attribute name	Attribute value
Material Type	316L
Size	4.0X3.0
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp
OD Tube Size	4.0X3.0
Wall Thickness	.083X.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG31CC4.0X3.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	31-14MP
Steel O’brien Part Number	31-14MP-4X3-316
Wayland Part Number	W31-14MP
Dixon Part Number	B3114MP
Sanitary Solutions Part Number	SS31-14MP
Sanitube Part Number	3114MP

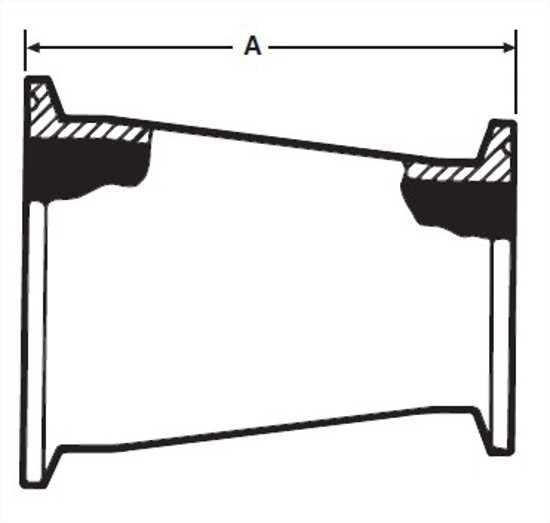

A, in.	5.125
A, mm.	130.18
Product Weight	1.42

Material Type

316L

Industry Standard

3A

Connections

Clamp X Clamp

Wall Thickness

.083X.065

Material Test Reports

MTR’s Available Upon Request

Pressure Rating

See PSI Service Ratings for Clamps

Cad Model File

EG31CC4.0X3.0.STEP

Alfa Laval Part Number

31-14MP

Wayland Part Number

W31-14MP

Sanitary Solutions Part Number

SS31-14MP

A, in.

5.125

Product Weight

1.42
