CODED HEAVY WALL TANK SPUD X SPEC LENGTH 6-1/4 OAL T316L 3A

Attribute name	Attribute value
Material Type	316L
Size	6
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Weld
OD Tube Size	6
Wall Thickness	0.109
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG14WSL-C6L6.0 REV1.STEP
Catalog File	Fittings Catalog.pdf
Steel O’brien Part Number	14ASME-6X6.25-316

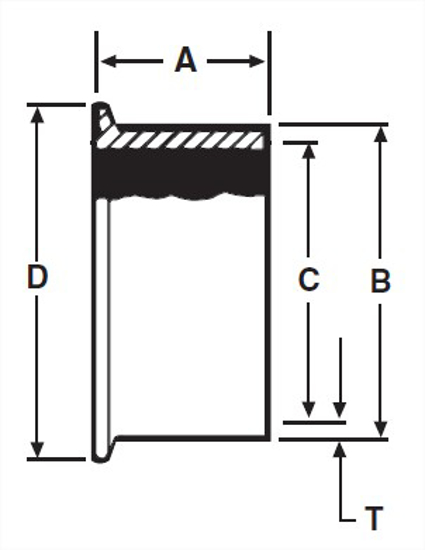

A, in.	6.25
A, mm.	158.75
B, in.	6.5
C, in.	5.782
C, mm.	146.86
D, in.	6.57
D, mm.	166.88
T Nom Wall, in.	0.359
