CODED HEAVY WALL TANK SPUD X SPEC LENGTH 4-1/2 OAL T316L 3A

Attribute name	Attribute value
Material Type	316L
Size	3
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Weld
OD Tube Size	3
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	Click here to request 3D Step File
Catalog File	Fittings Catalog.pdf
Steel O’brien Part Number	14ASME-3X4.5-316

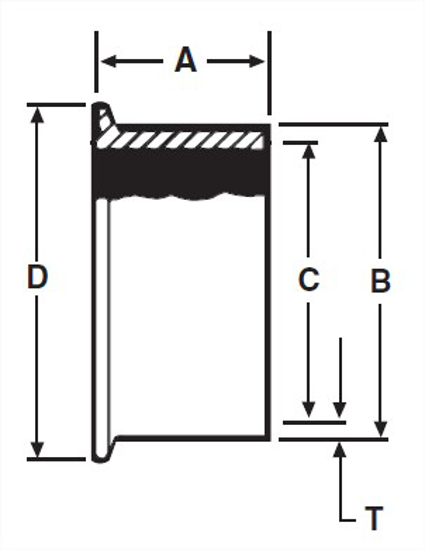

A, in.	4.5
A, mm.	114.3
B, in.	3.224
C, in.	2.87
C, mm.	72.9
D, in.	3.579
D, mm.	90.91
T Nom Wall, in.	0.177

Material Type

316L

Industry Standard

3A

Connections

Clamp X Weld

Wall Thickness

0.065

Material Test Reports

MTR’s Available Upon Request

Pressure Rating

See PSI Service Ratings for Clamps

Cad Model File

Click here to request 3D Step File

Steel O’brien Part Number

14ASME-3X4.5-316

A, mm.

114.3

C, in.

2.87

D, in.

3.579

T Nom Wall, in.

0.177
