CODED HEAVY WALL TANK SPUD X SPEC LENGTH 2 1/2 OAL T316L 3A

Attribute name	Attribute value
Material Type	316L
Size	1
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Weld
OD Tube Size	1
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG14WSL-C6L1.0 REV1.STEP
Catalog File	Fittings Catalog.pdf
Steel O’brien Part Number	14ASME-1X2.5-316

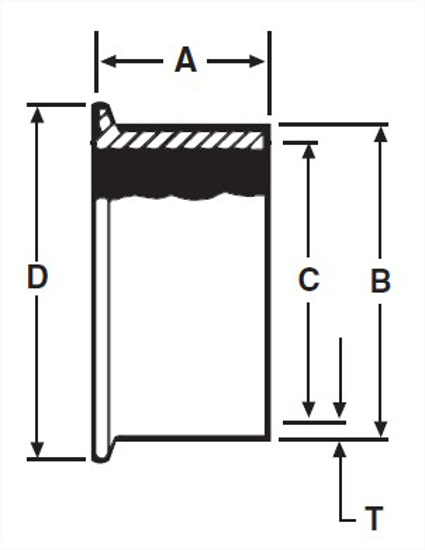

A, in.	2.5
A, mm.	63.5
B, in.	1.16
C, in.	0.87
C, mm.	22.1
D, in.	1.984
D, mm.	50.39
T Nom Wall, in.	0.145
