CLAMP FERRULE SHORT T316L 15/16 OAL 3A

Attribute name	Attribute value
Material Type	316L
Size	8
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Weld
OD Tube Size	8
Wall Thickness	0.109
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG2CS8.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	14WMPS
Steel O’brien Part Number	14WMP-8-316
Wayland Part Number	W14WMP
Dixon Part Number	14WMP
Sanitary Solutions Part Number	SS14WMP
Sanitube Part Number	14WMP

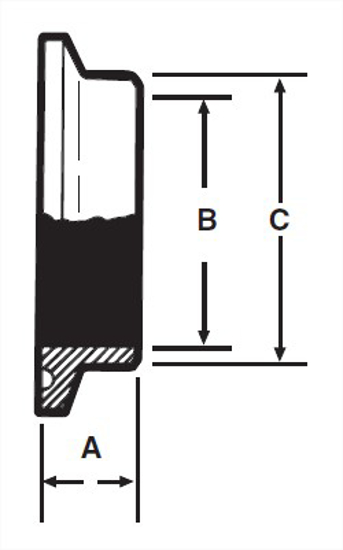

A, in.	0.937
A, mm.	23.8
B, in.	7.782
Product Weight	1.16
