BUTTERFLY VALVE/BUTT WELD CONN EPDM SEAT, T304

Attribute name	Attribute value
Material Type	304
Size	4
Seat Material	EPDM
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	4
Wall Thickness	0.083
Material-Type	304
Seat-Material	EPDM
Country of Origin	Germany
Material Test Reports	COC Available for 304 Materials
Valve Pressure Rating	Max 145 psi
Valve Temperature Rating	15 - 200 F
Cad Model File	Click here to request 3D Step File
Catalog File	valves.pdf

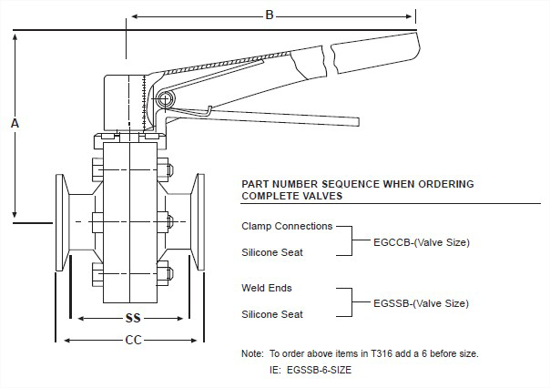

A, in.	5.937
A, mm.	150.8
B, in.	7
CC, in.	4
CC, mm.	101.6
SS, in.	2.75
SS, mm.	69.85
