Size
|
3 |
|
Seat Material
|
VITON |
|
Industry Standard
|
3A;FDA Title 21, Paragraph 177.2600 |
|
ID / OD Polish
|
32 µin Mechanical ID / 32 µin Mechanical OD |
|
Connections
|
Weld X Weld |
|
OD Tube Size
|
3 |
|
Wall Thickness
|
0.065 |
|
Material-Type
|
316L |
|
Seat-Material
|
VITON |
|
Country of Origin
|
Israel |
|
Material Test Reports
|
COC Available for 316L Materials |
|
Pressure Table
|
PVE Working Pressure Data.jpg |
|
Configuration and Flow Direction Image Download
|
pveflow9nc.jpg |
|
IOM Valve
|
IOM MaxClean Single Seat PVE Valves.pdf |
|
Cad Model File
|
EPVE-9-NC-3.0.SLDPRT |
|
Catalog File
|
MaxClean Single Seat PVE Valves.pdf |
|

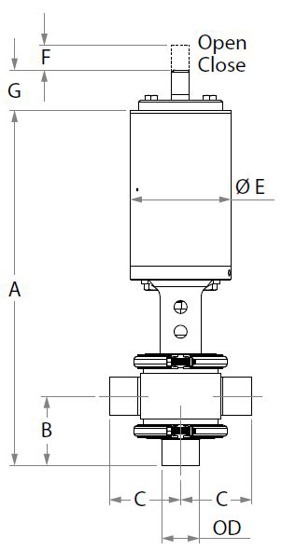

A, in.
|
17.05 |
|
A, mm.
|
433 |
|
B, in.
|
3.27 |
|
C, in.
|
3.74 |
|
C, mm.
|
95 |
|
E, in.
|
5.08 |
|
E, mm.
|
129 |
|
F, in.
|
1.53 |
|
F, mm.
|
38.9 |
|
G, in.
|
1.69 |
|
G, mm.
|
43 |
|
T Nom Wall, in.
|
0.065 |
