ADAPTER CLAMP X MNPT T316L #7

Attribute name	Attribute value
Material Type	316L
Size	6.0X4.0
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Male NPT
OD Tube Size	6.0X4.0
Wall Thickness	.109X.083
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG21-6L6.0X4.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	21MP
Steel O’brien Part Number	21MP-6X4-316
Wayland Part Number	W21MP
Dixon Part Number	21MP
Sanitary Solutions Part Number	SS21MP
Sanitube Part Number	21MP

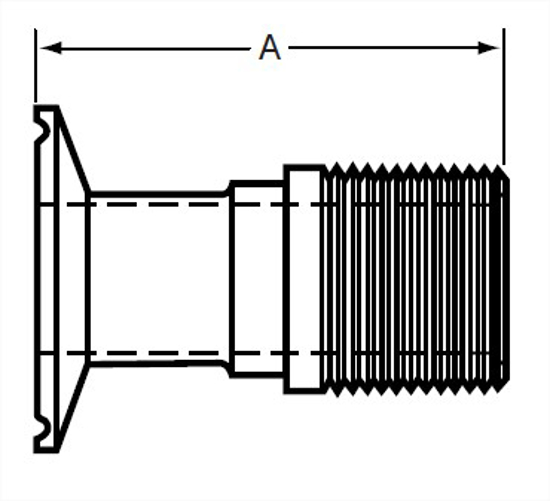

A, in.	3.062
A, mm.	77.77

Material Type

316L

ID / OD Polish

32 µin Mechanical ID / 32 µin Mechanical OD

OD Tube Size

6.0X4.0

Material-Type

316L

Passivated

Special Request

Pressure Table

clamppressure.pdf

Catalog File

Fittings Catalog.pdf

Steel O’brien Part Number

21MP-6X4-316

Dixon Part Number

21MP

Sanitube Part Number

21MP

A, mm.

77.77
